Fluid Bed Dryer


Fluid Bed Dryer
GMP Fluid Bed Dryer with latest improved design makes this unit a truly versatile for Pharmaceutical, Food, Dyestuff & Chemical industries. Our Fluid Bed Dryer is capable of drying materials in any forms like granular, powder or crystalline. Afluidized bed of solid particles with a stream of air passing up-ward through the particles at a rate great enough to set them in motion. As the air travels through the particle bed, the particles behave as boiled water. The active motion creates the potential for improved mixing and results an isothermal property. In a bubbling fluidized bed, no temperature gradient exists within the mass of the fluidized particles. Because the temperature and volume of the air can be precisely adjusted, the process achieves fast heat transfer making it very efficient, yet gentle on the product. Our product precisely maintains moisture content up to 20% which is ideal for pharmaceuticals and chemicals .
Salient Features :
Available in GMP and Non-GMP Model (MOC: SS316 / SS304).
Pre air filtration by 20 micron filters and secondary by 5 micron filters, Final air filtration through HEPA (0.3 micron)
filters (OPTIONAL).
Intrinsically safe earthing system ensures complete elimination of static charge.
65% open perforated air distribution plates along with Dutch Weave Mesh.
On-line Sampling Port for easy sampling during operation.
Pneumatically operated inflatable seals provided for filter bag and product container sealing with pressure switches &
  FRL to ensure fail safe operation.
Top mounted pneumatic cylinder (directly coupled) for shaking (without wire rope system). (OPTIONAL)
Internal surface of all the vessels will be ground and polished to mirror finish.
Mounting Structure fabricated of rigid square pipes of SS304 / MS Cladded with SS & polished to matt surface finish.
Fan motor unit & Filtration unit can be placed in remote areas.
Heating mode Electrical / Steam.
Asound attenuator will be fitted to keep noise emissions to < 75 dB.
Flameproof Motor with FLP Push Button and Flameproof Control Panel. (OPTIONAL)
Contrtol Panel :
Panel Board is fabricated from SS304 sheet. The same can be provided as Electrical OR PLC Based operation.
Panel Board consists of Relays, Motor Starter, Indicating Lamp, Push Buttons, etc.
Digital Timer, Inlet/OutietTemp. Controller can be provided. (OPTIONAL)
Technical Specifications :

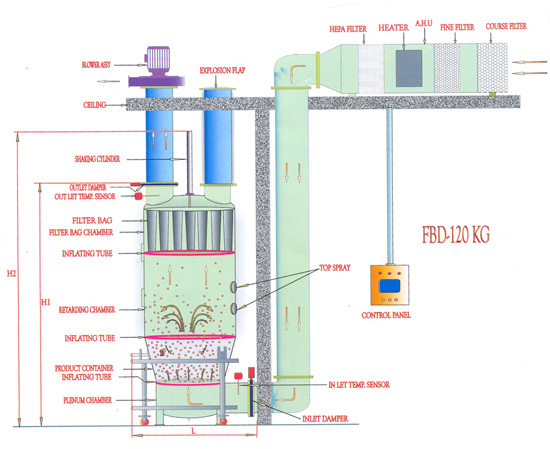

Fluid Bed Dryer Technical Specifications

MODEL CPM10 CPM30 CPM60 CPM120 CPM150 CPM200 CPM250 CPM300
Bowl Volume (Liters) 35 110 200 425 500 625 780 925
Batch Size (Kgs) 10-15 30-40 60-75 120-150 150-180 200-230 250-280 300-330
Heating Load : (kw) For Electrical Heating 6 18 36 54* 60* * * *
Approx. steam Consumption Kgs/hr. (Steampressure 3.5 kg / cm2) 15 25 50 100 130 170 200 250
Motor (H.P.) 2 5 10 15 20 20 25 30
Drying Temp C* 50-80 50-80 50-80 50-80 50-80 50-80 50-80 50-80
Height H1 (Approx) mm 1600 1900 2200 2550 2600 2800 3000 3100
Height H2 (Approx) mm 2000 2550 3000 3500 3500 3900 4000 4200
Width (Approx) mm 1050 1400 1550 1800 1850 2000 2100 2150
Lenth (Approx) mm 800 1250 1500 1700 1700 2000 2100 2200
